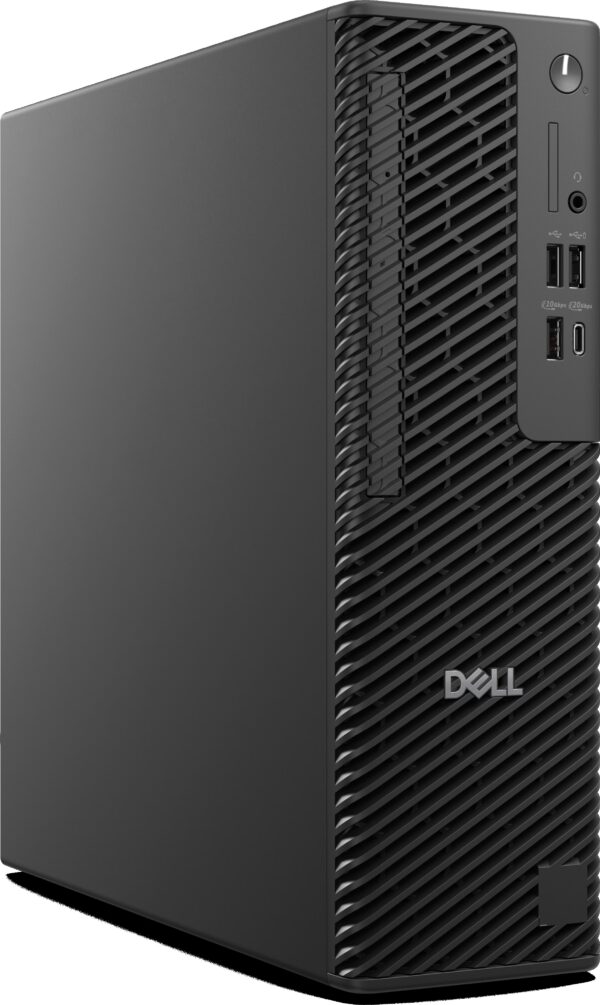

Engineering Desktop – Level 4

Product Description

• Engineering Desktop – Level 4 with Complete SolidBox Integration
• Windows 11 Pro x64 Operating System
• Intel® Core™ Ultra 9 285K (24 cores, up to 5.7 GHz, 125 W)
• 128GB: 4 x 32 GB, DDR5, 4400 MT/s, non-ECC
• NVIDIA® RTX™ 4000 SFF ADA, 20 GB GDDR6, 4 mDP to DP adapters
• 1TB PCIe M.2 SSD Solid State Hard Drive (OS)
• 1TB PCIe M.2 SSD Solid State Hard Drive (DATA)
• Media Card Reader
• Intel(R) Wi-Fi 7 BE200, 2×2, 802.11be, MU-MIMO, Bluetooth(R) 5.4 wireless card, Ext Antenna
• Dell ProSupport Plus – 3 Years for End User
• Dell Keep Your Hard Drive Data Protection Service

Specs

Dimensions:

• Height: 11.95” (303.50 mm) X Width: 3.74” (95.00 mm) X Depth: 11.53” (293.00 mm)
• Starting weight: 8.75 lbs (3.97 kg)

Ports:

• Front
  • 1 USB 3.2 Gen 2 (10Gbps) port
  • 1 USB 3.2 Gen 2×2 Type-C^® (20Gbps) port
  • 1 USB 2.0 (480Mbps) with PowerShare port
  • 1 USB 2.0 (480Mbps) ports
  • 1 Global headset jack
• Rear
  • 1 RJ45 port 10/100/1000 Mbps
  • 3 USB 3.2 Gen 1 (5Gbps) ports
  • 1 USB 3.2 Gen 2 Type-C^® (10Gbps) port
  • 2 USB 2.0 (480Mbps) with PowerShare port
  • 3 DisplayPort™ 1.4a (HBR3 support) ports
  • 1 Audio Line out

Slots:

• 1 SD-card 4.0 slot (optional)
• 1 half-height Gen4 PCIe x16 slot
• 1 half-height Gen3 PCIe x4 slot
• 1 half-height Gen3 PCIe x1 slot
• 2 SATA 3.0 slots for 3.5-inch HDD and slim optical drive
• 1 M.2 2230 slot for Wi-Fi and Bluetooth combo card
• 1 M.2 2230/2280 slots for solid-state drive
• 1 M.2 2280+2230 (without bracket) slot for solid-state drive
• 1 M.2 2230 slot for solid-state drive
